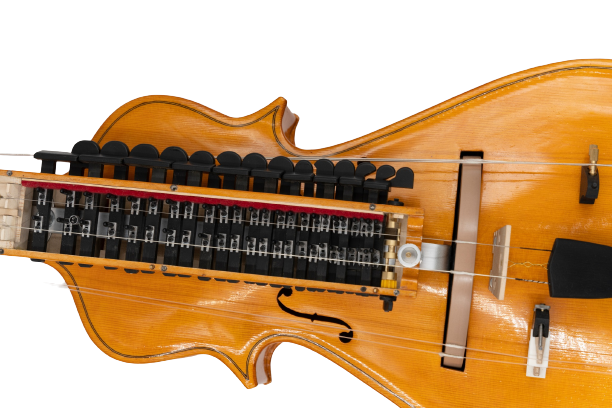

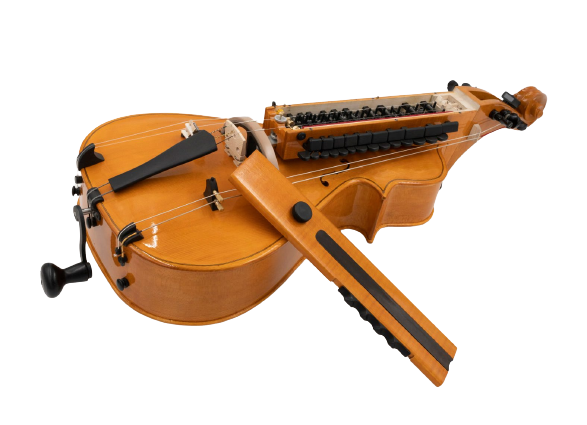

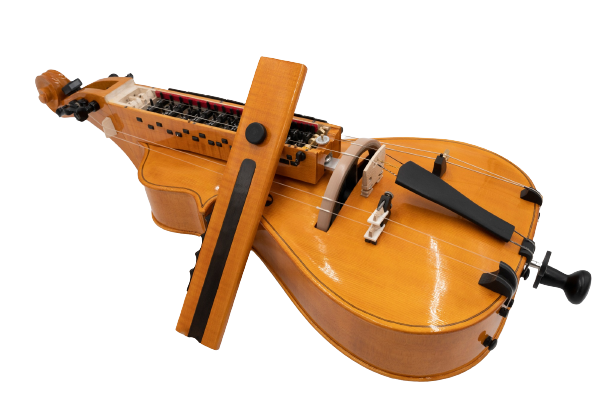

Delicato   2022

  Click image to enlarge it.
  Sound sample by Scott Marshall













 Optional....

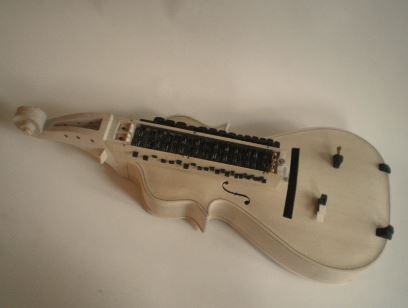

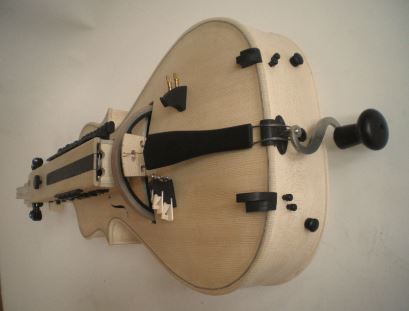

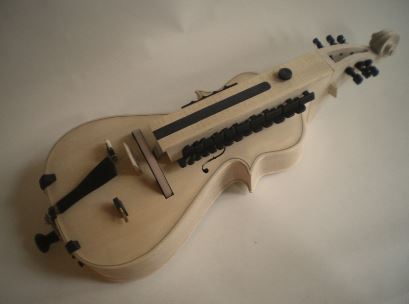

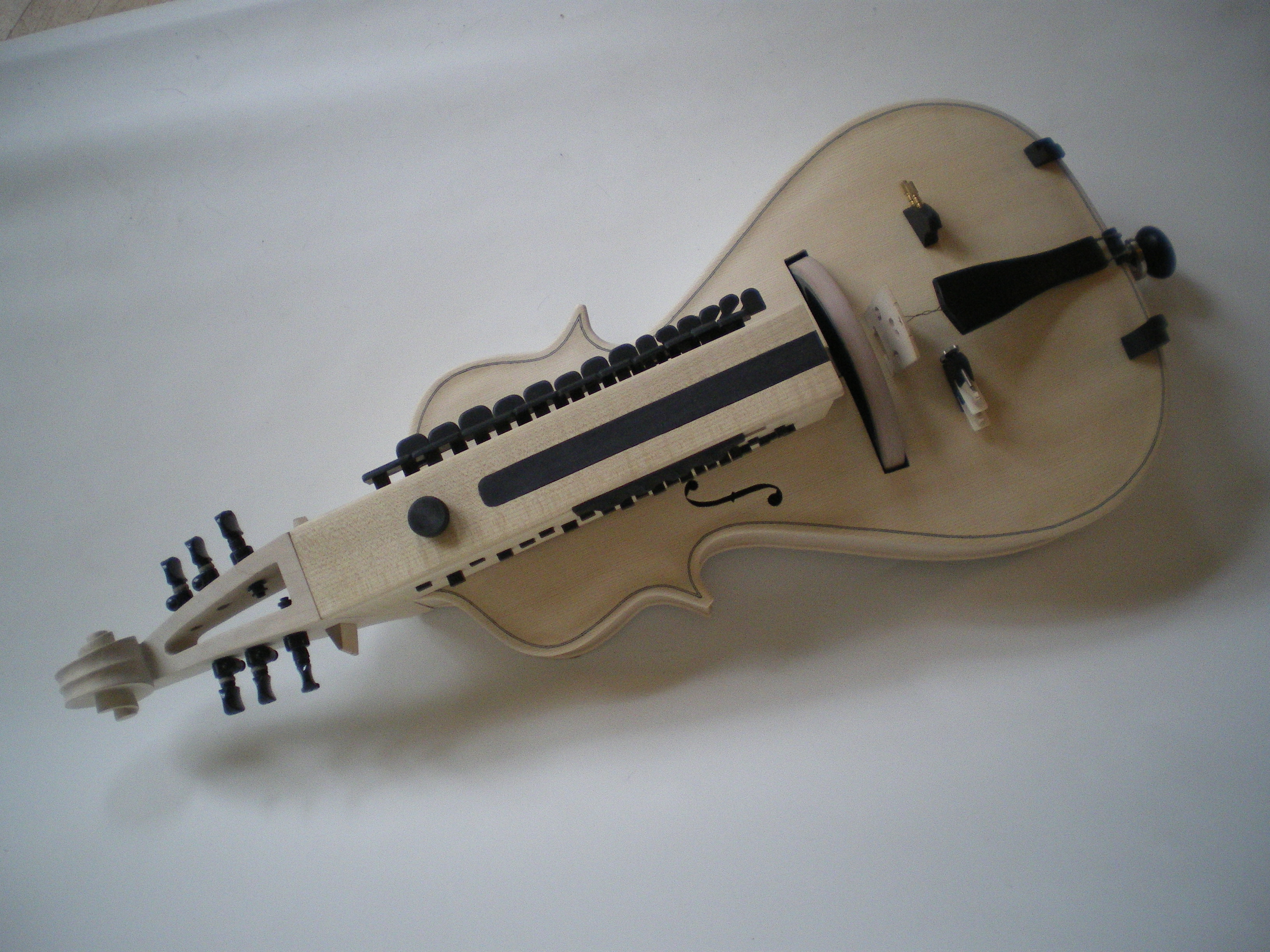

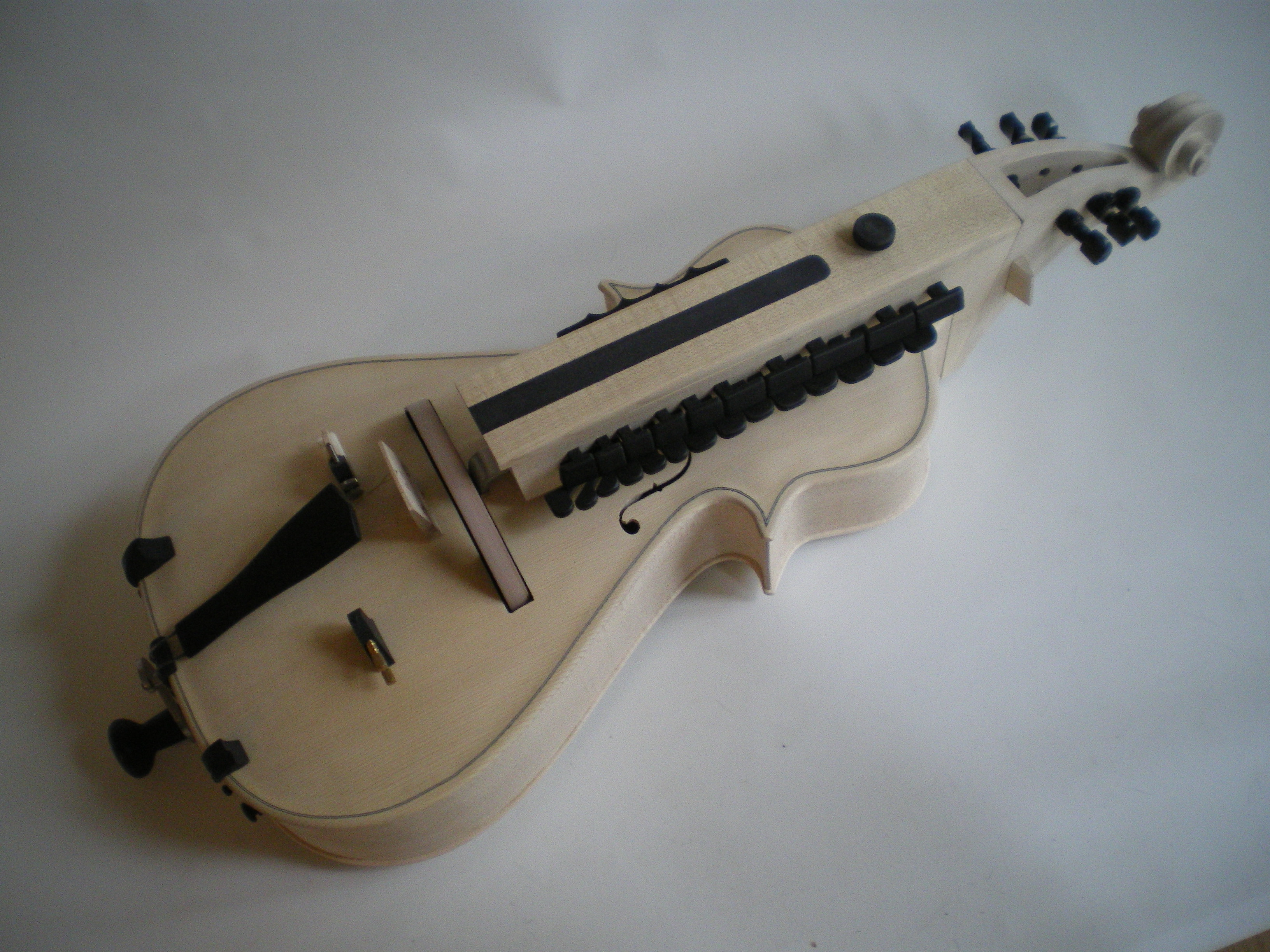

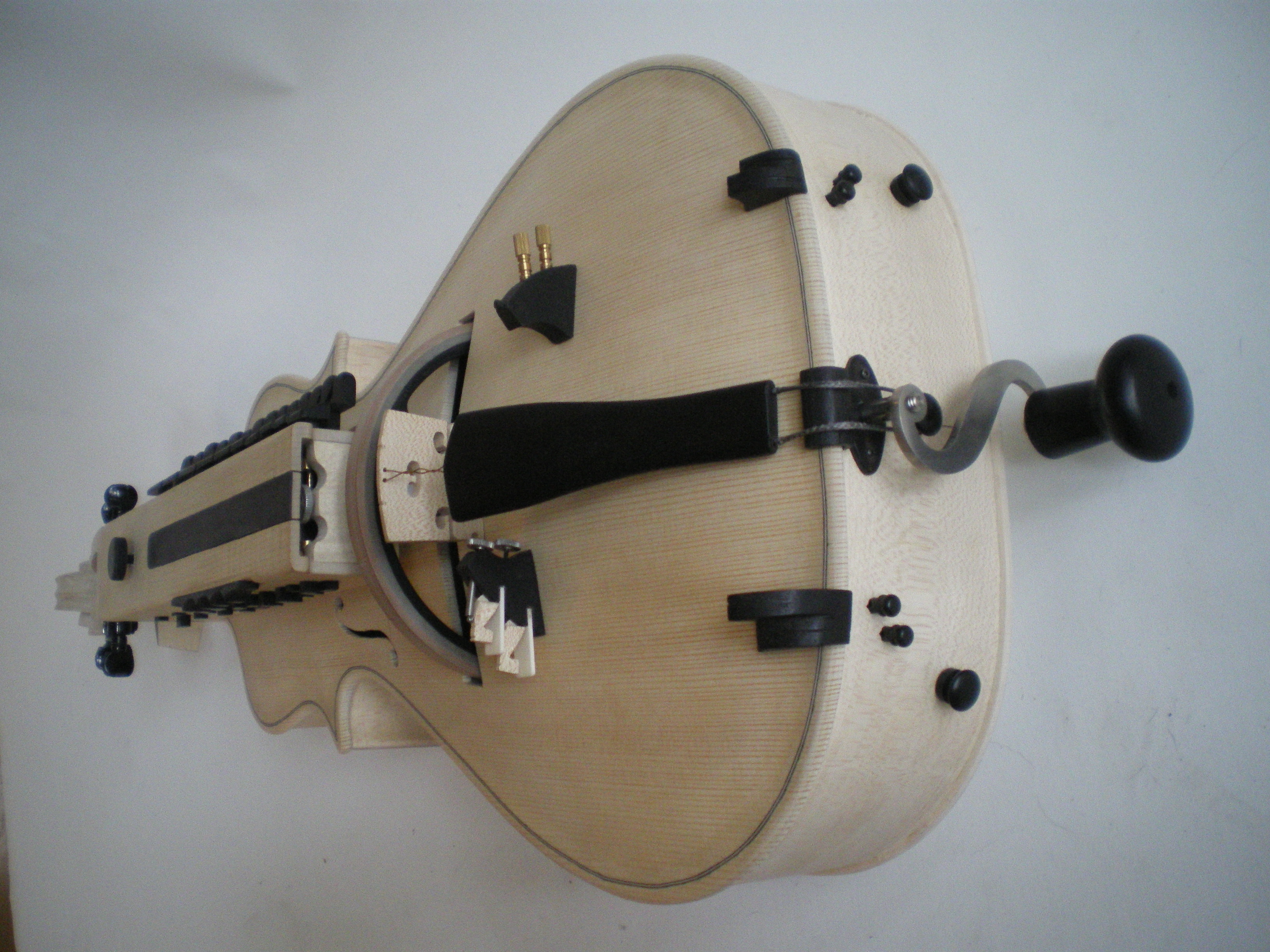

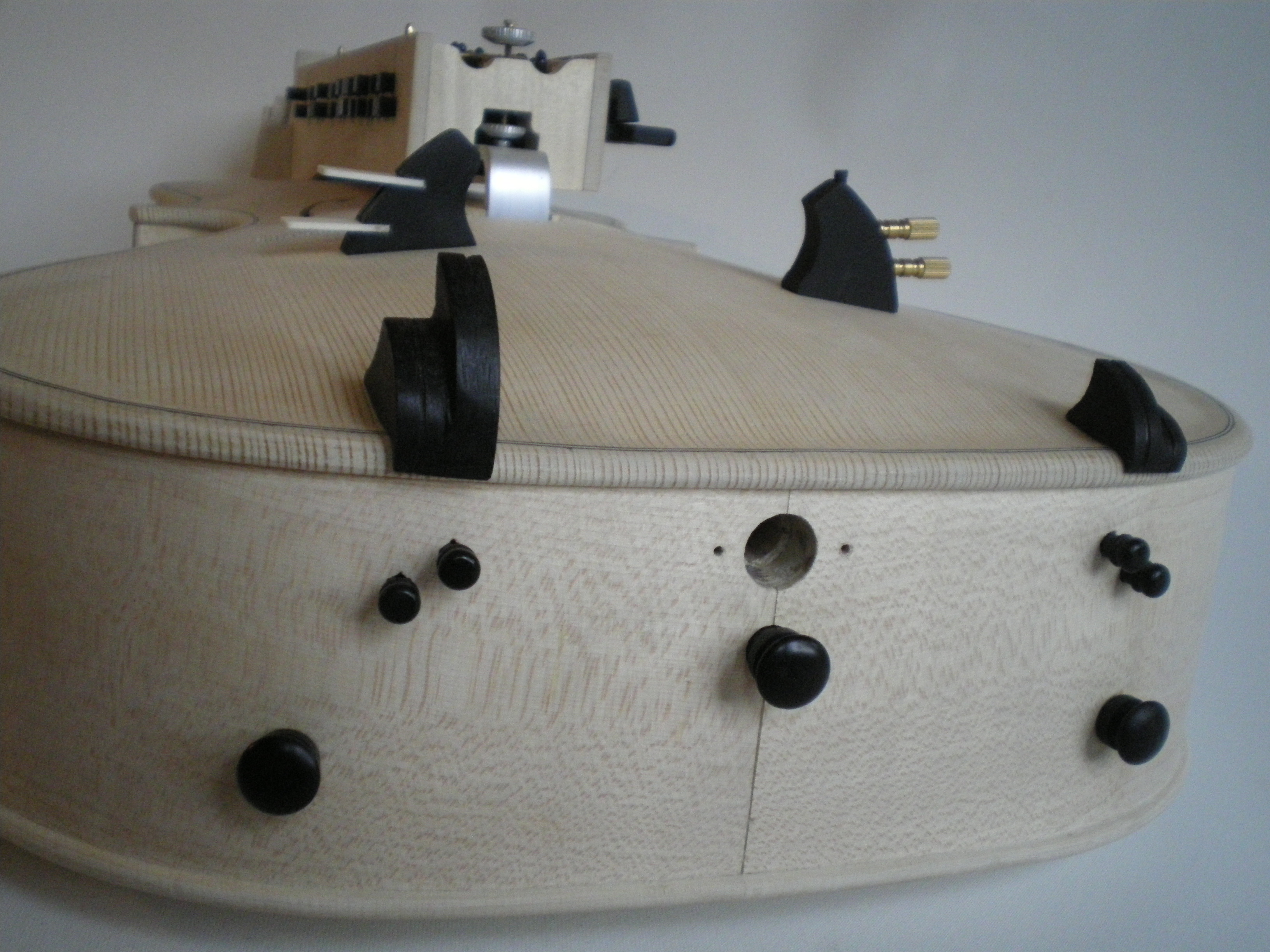

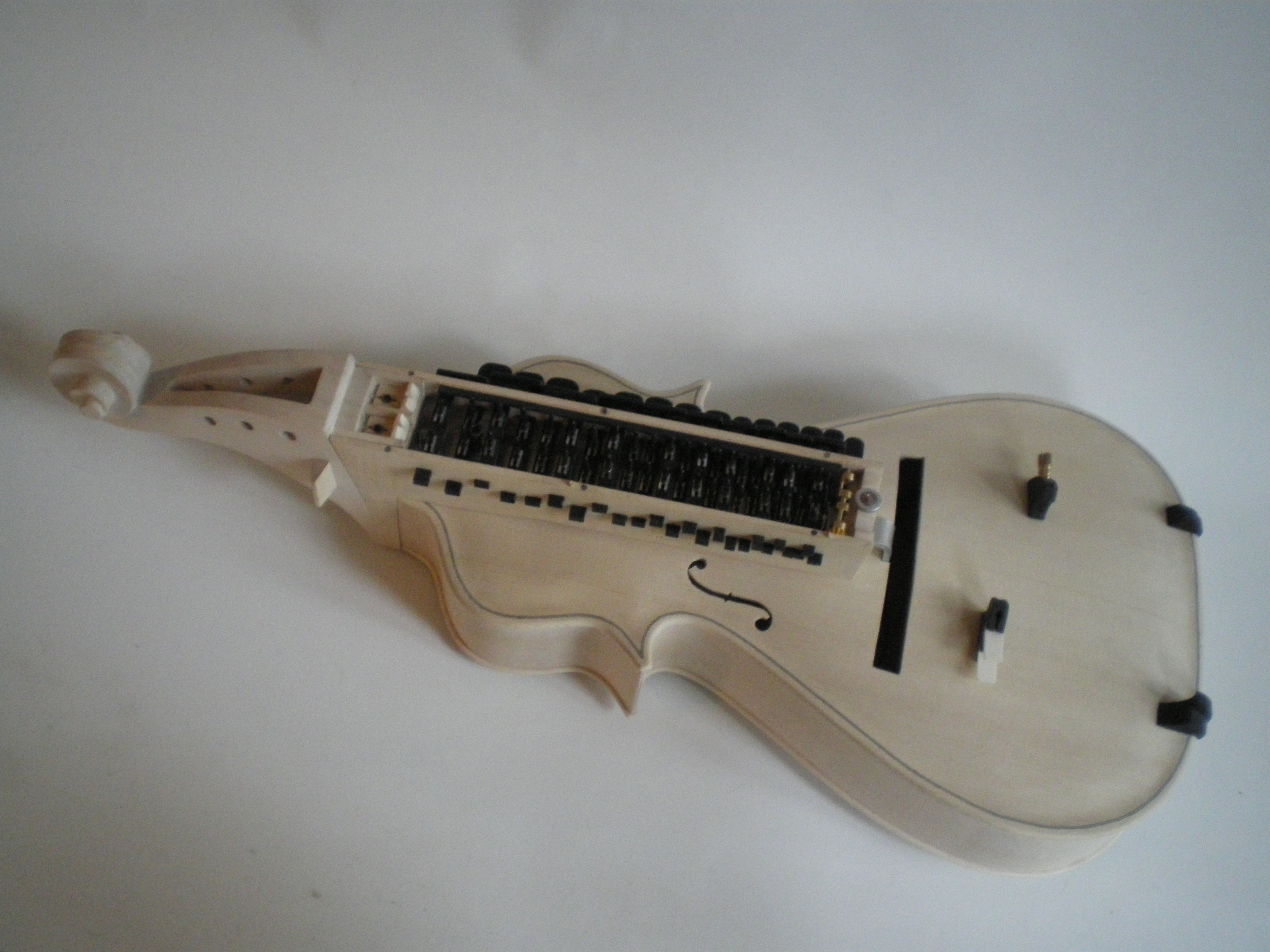

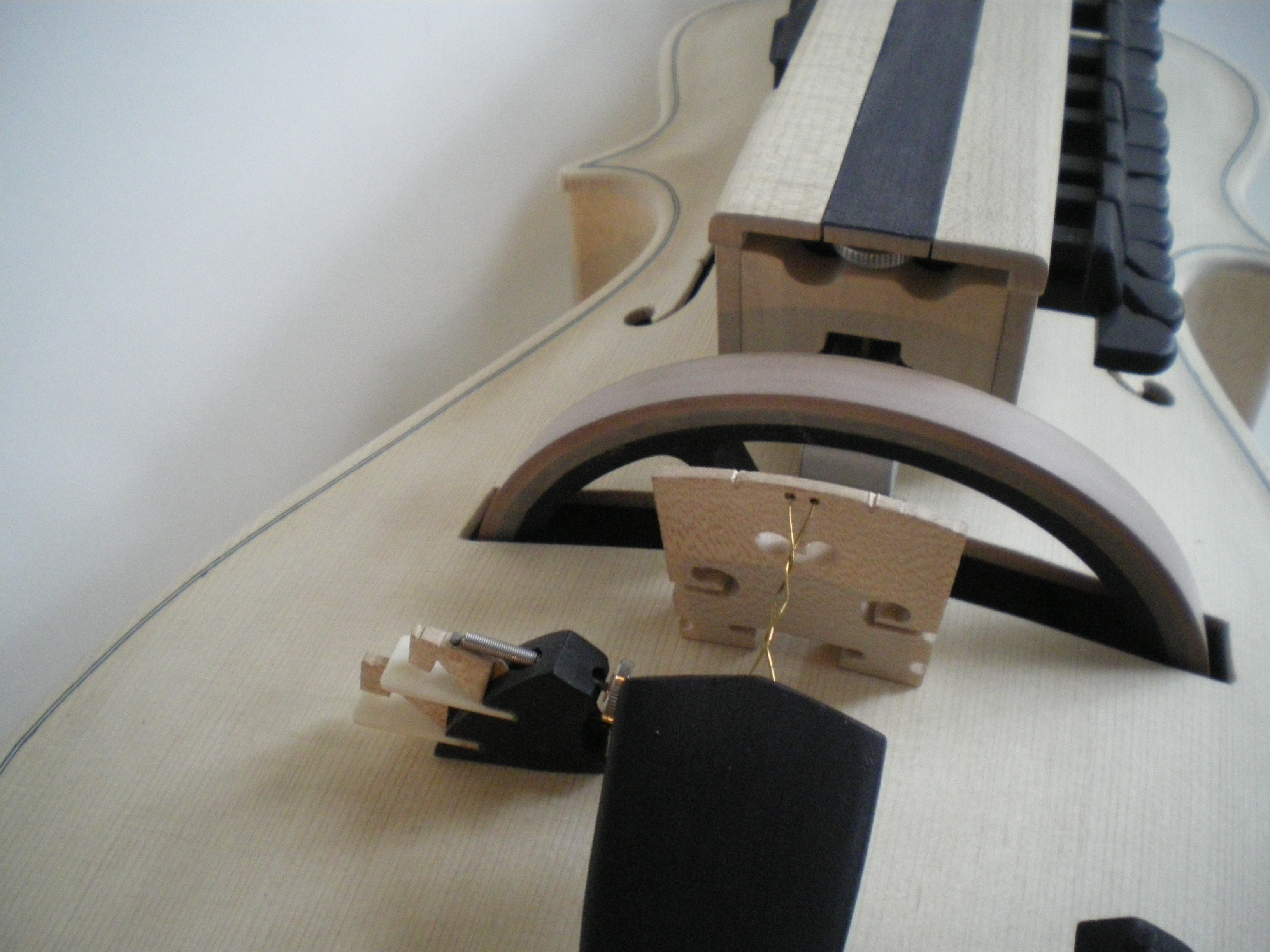

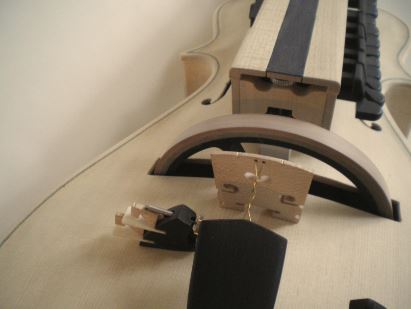

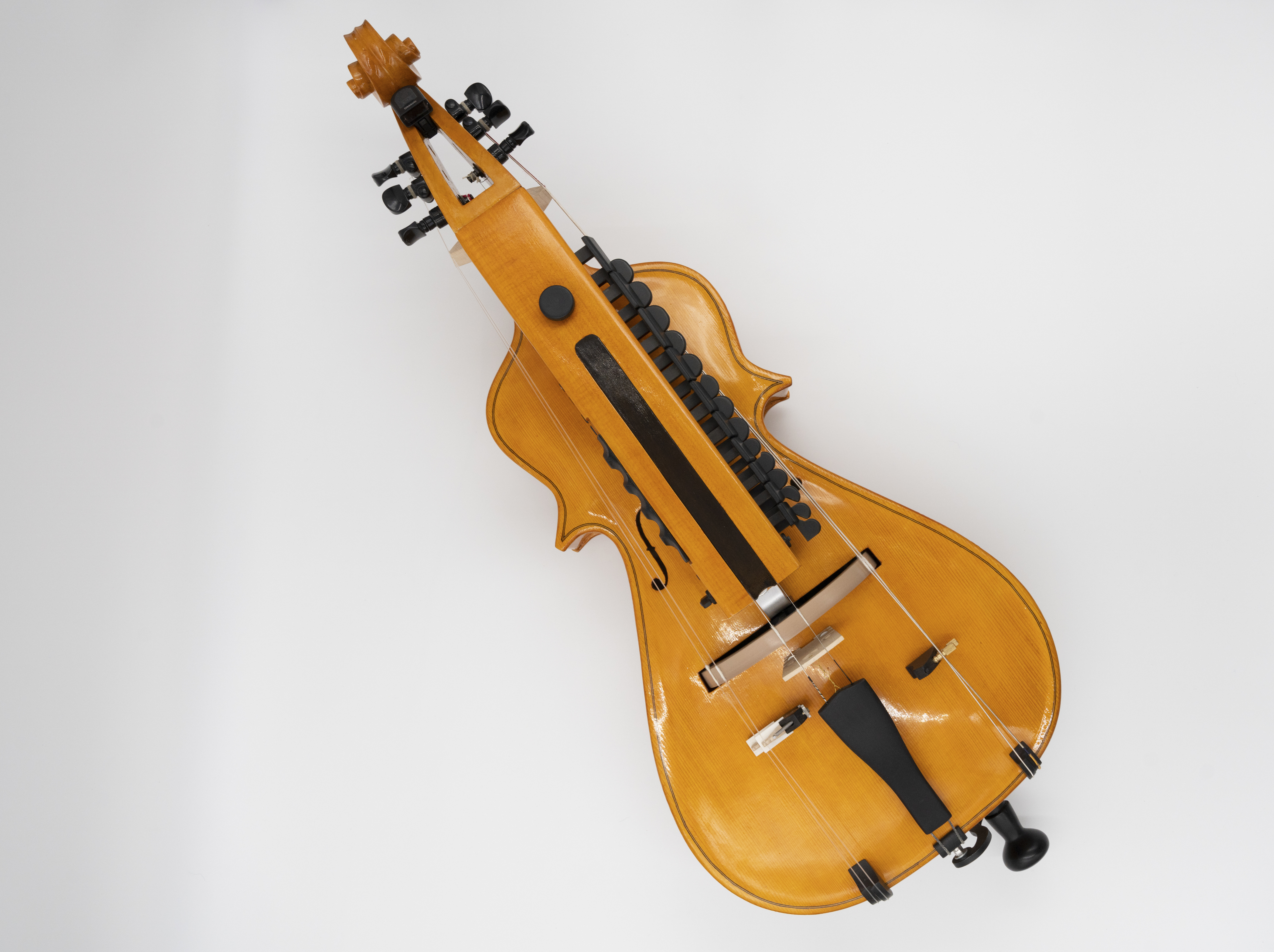

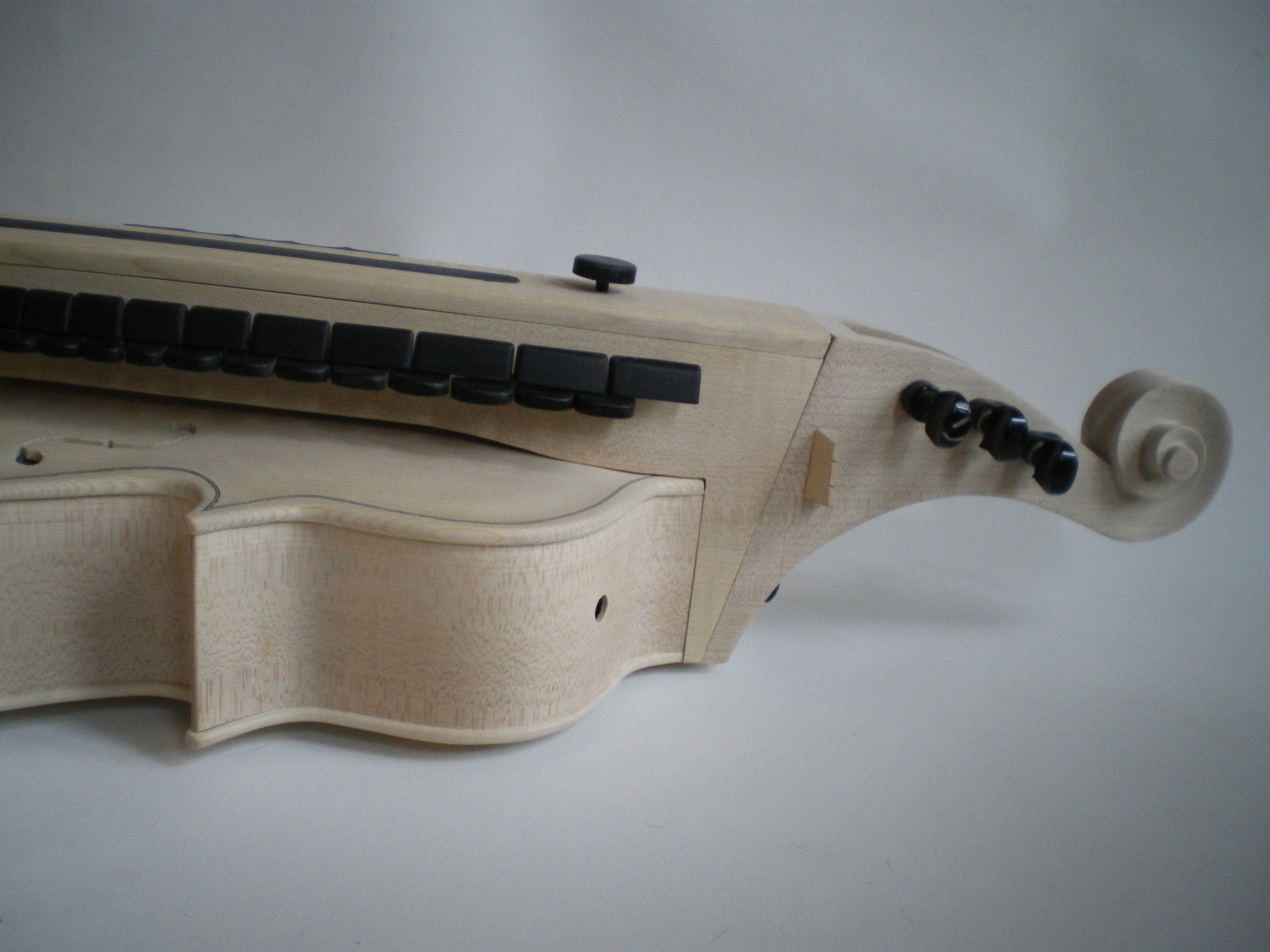

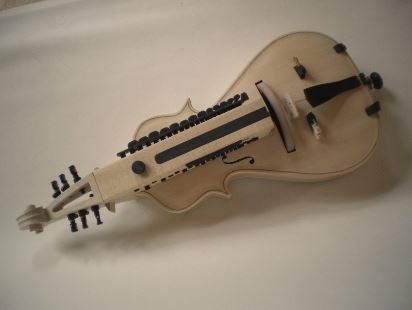

 Before varnishing....













Properties
General Design: www.peter-streng.eu
Chanterelles: 2, g + g'
Trompettes: 2, c' + d'
Bourdons: 2, C + G
Scale Length: 37 cm
Soundboard: Spruce
Rib: Maple

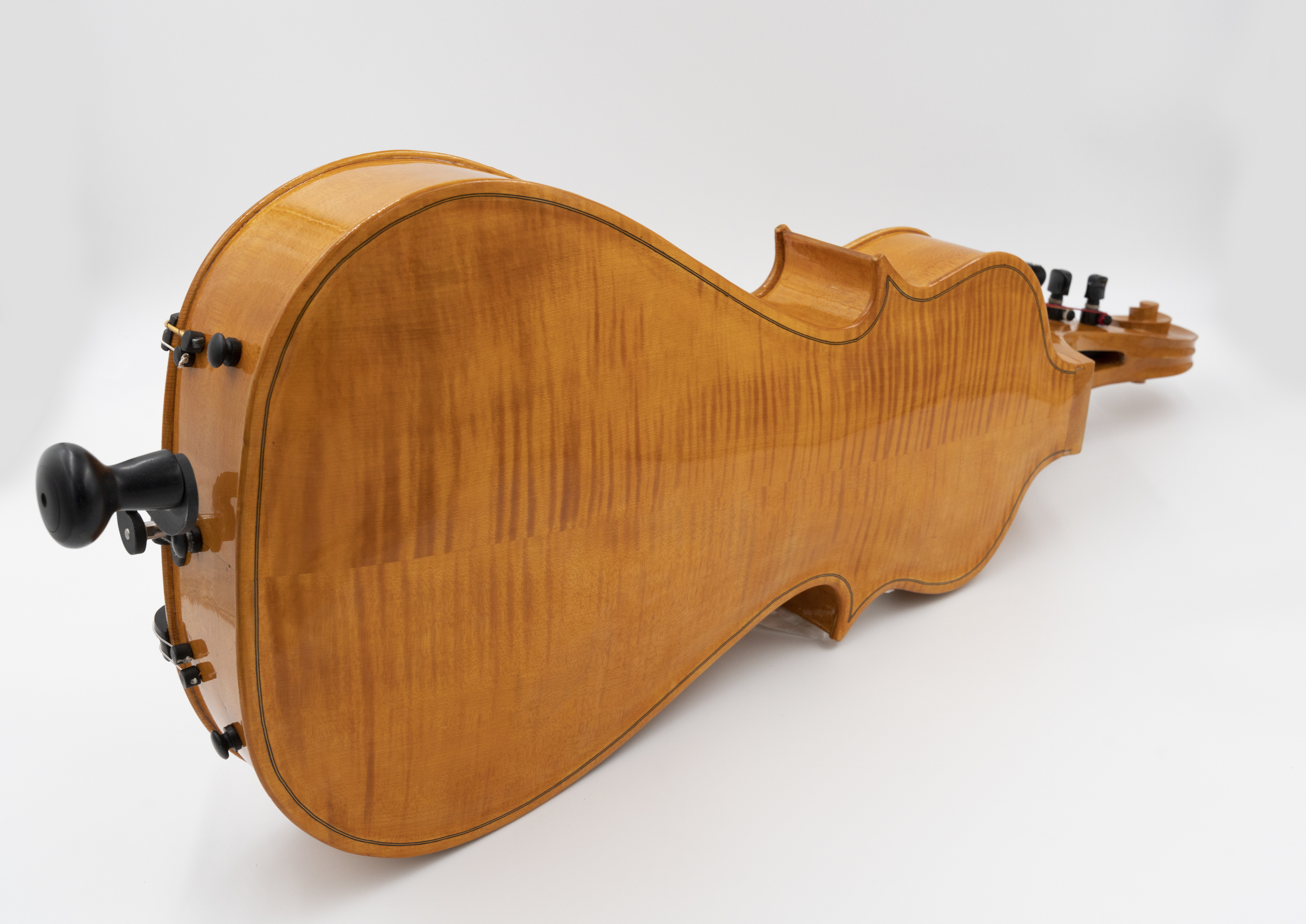

Back plate: Maple

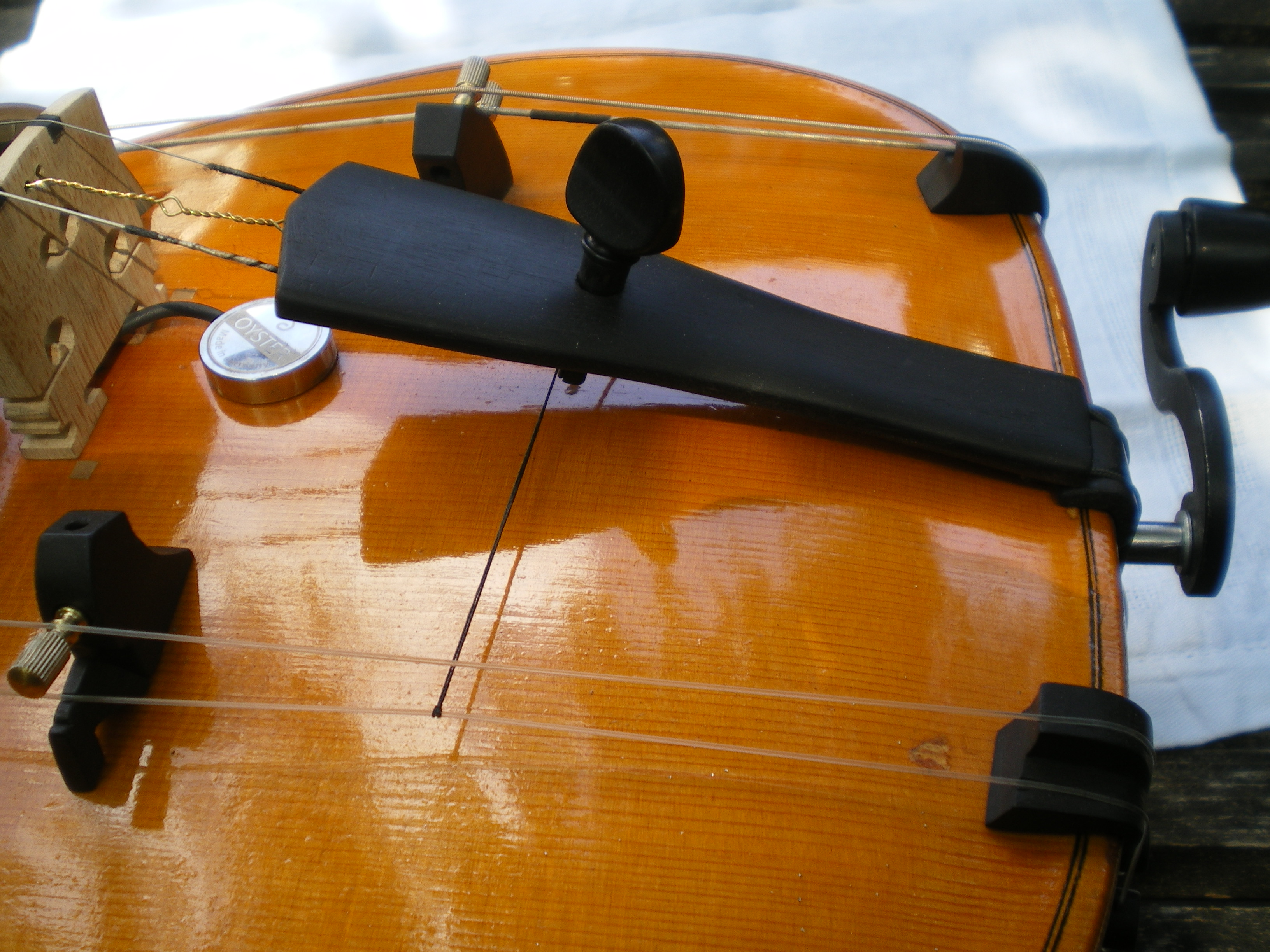

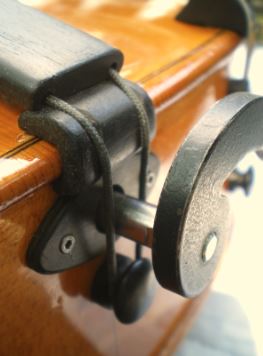

Tail piece: Ebony
Handle: Ebony

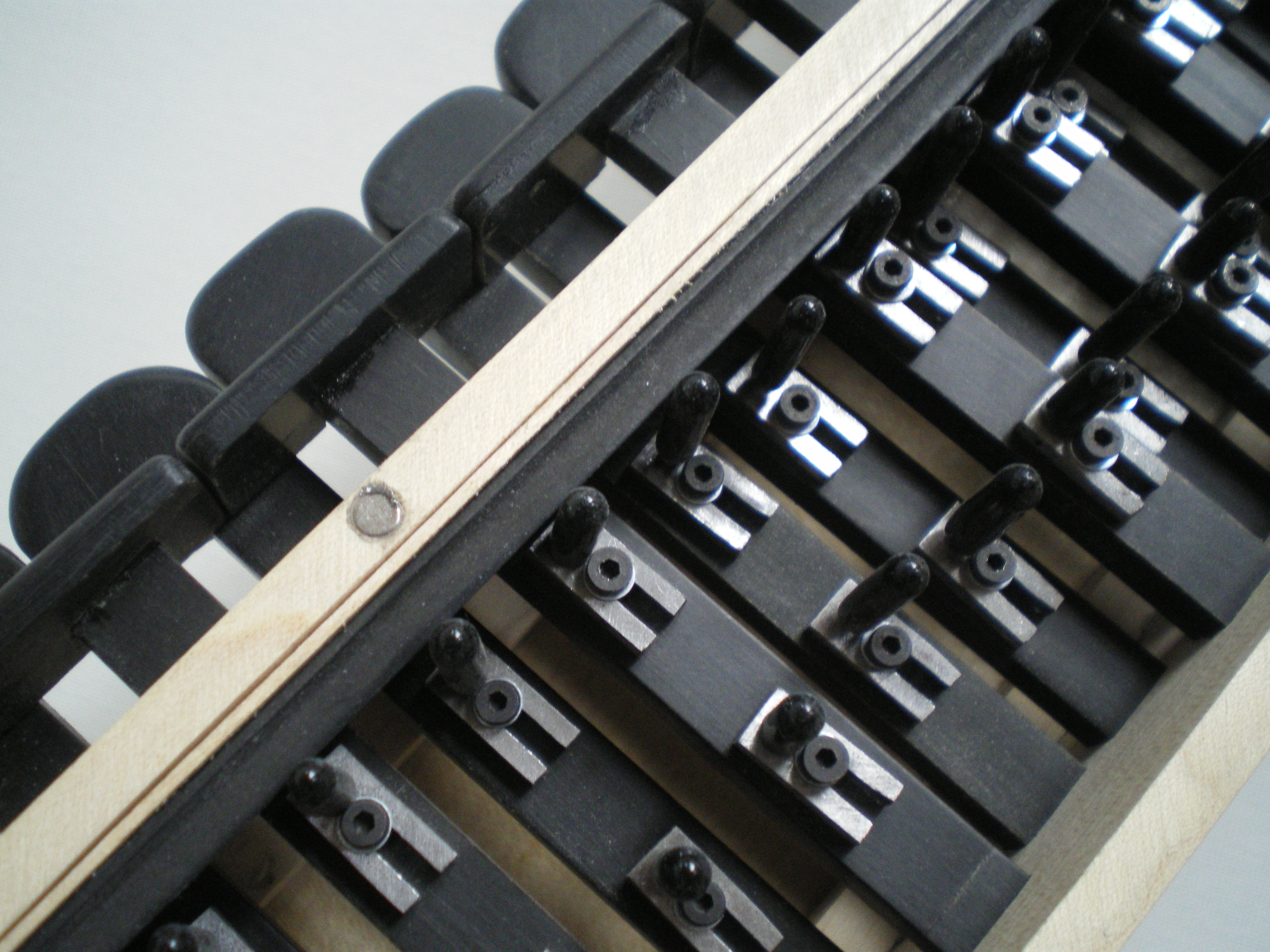

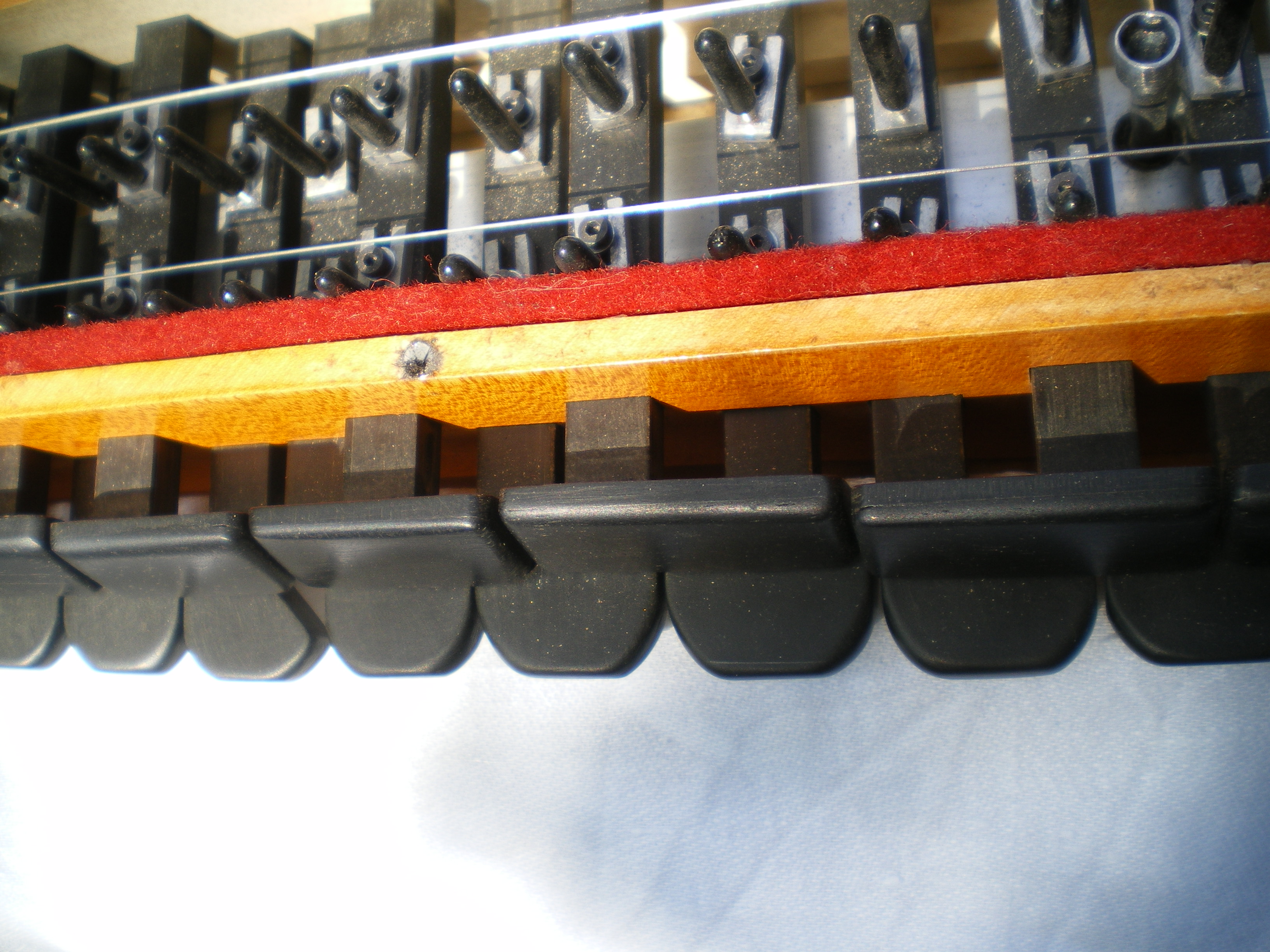

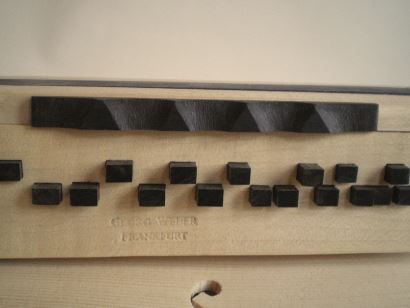

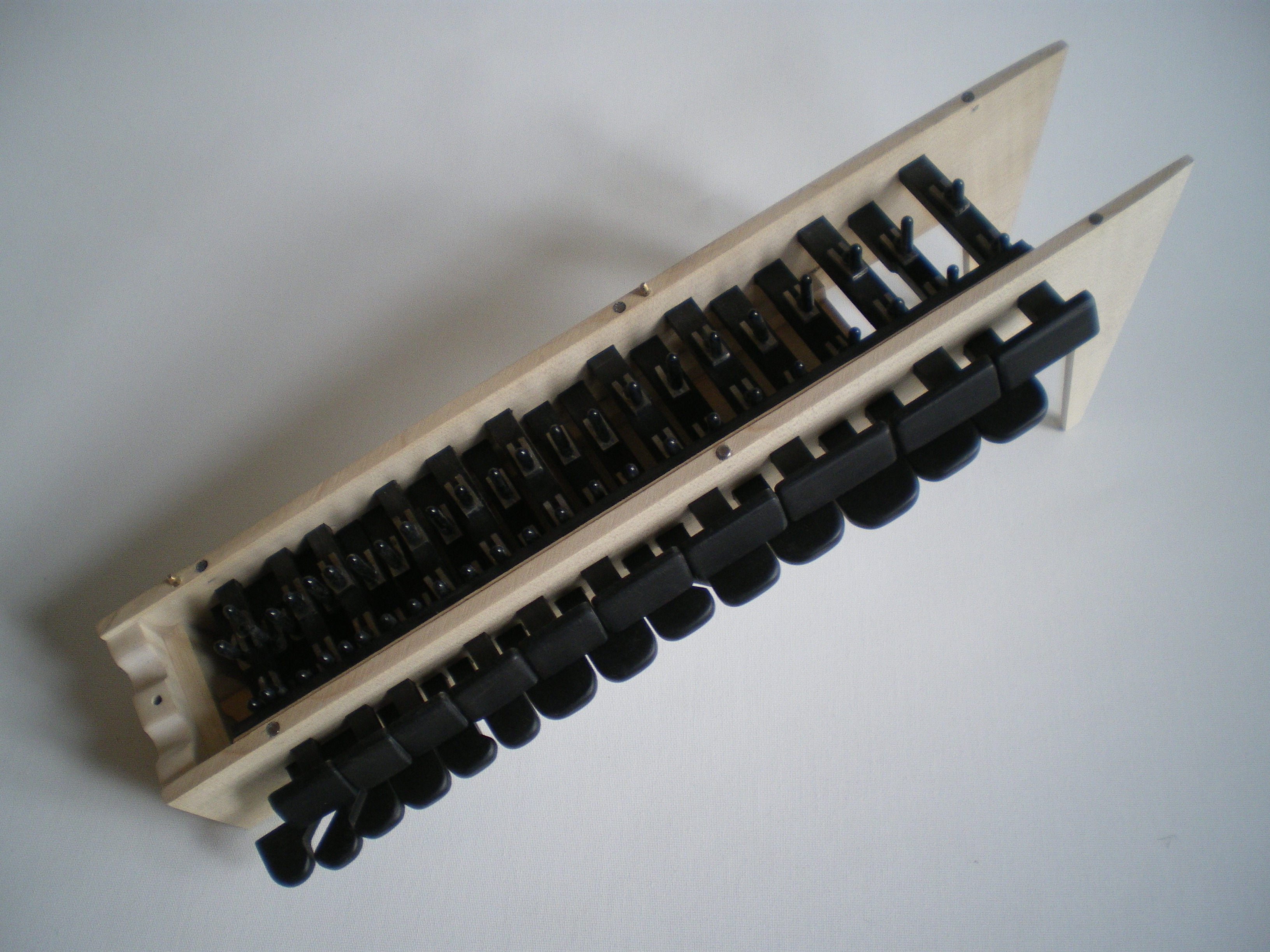

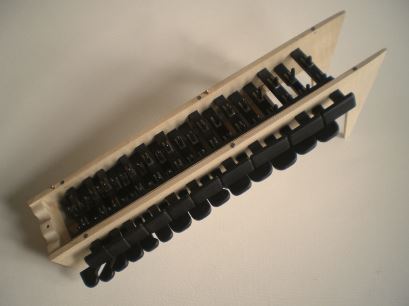

Keys: 24, Plywood
Tangents: Steel
Wheel: Ø 16,5 cm, 3D Print + Silicon + Necuron

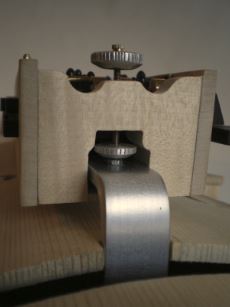

Wheel suspension: Fully dynamic
Axle: Ø 10mm, V2A
Bearings: Delrin/POM
Measurements: Total w/o crank 80 cm, Body 55 cm

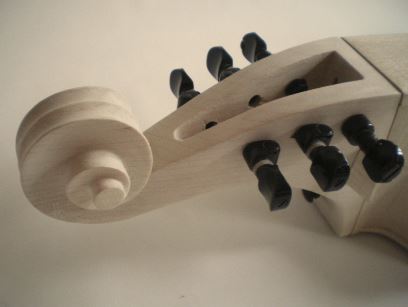

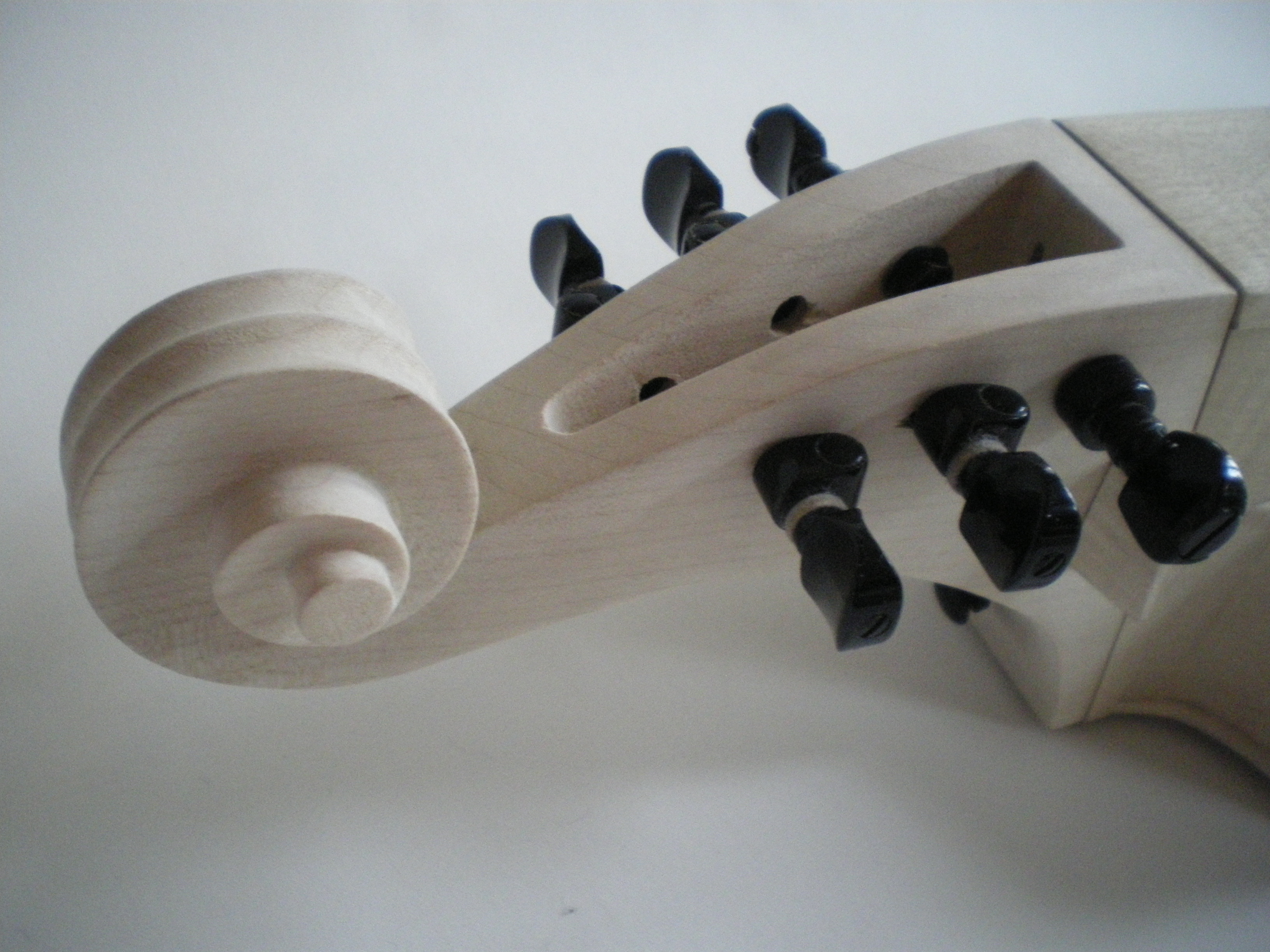

Pegs: Finetune

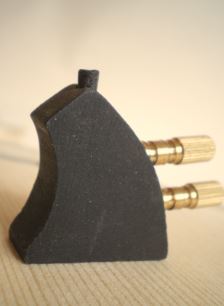

Bourdon Bridge: Adjustable

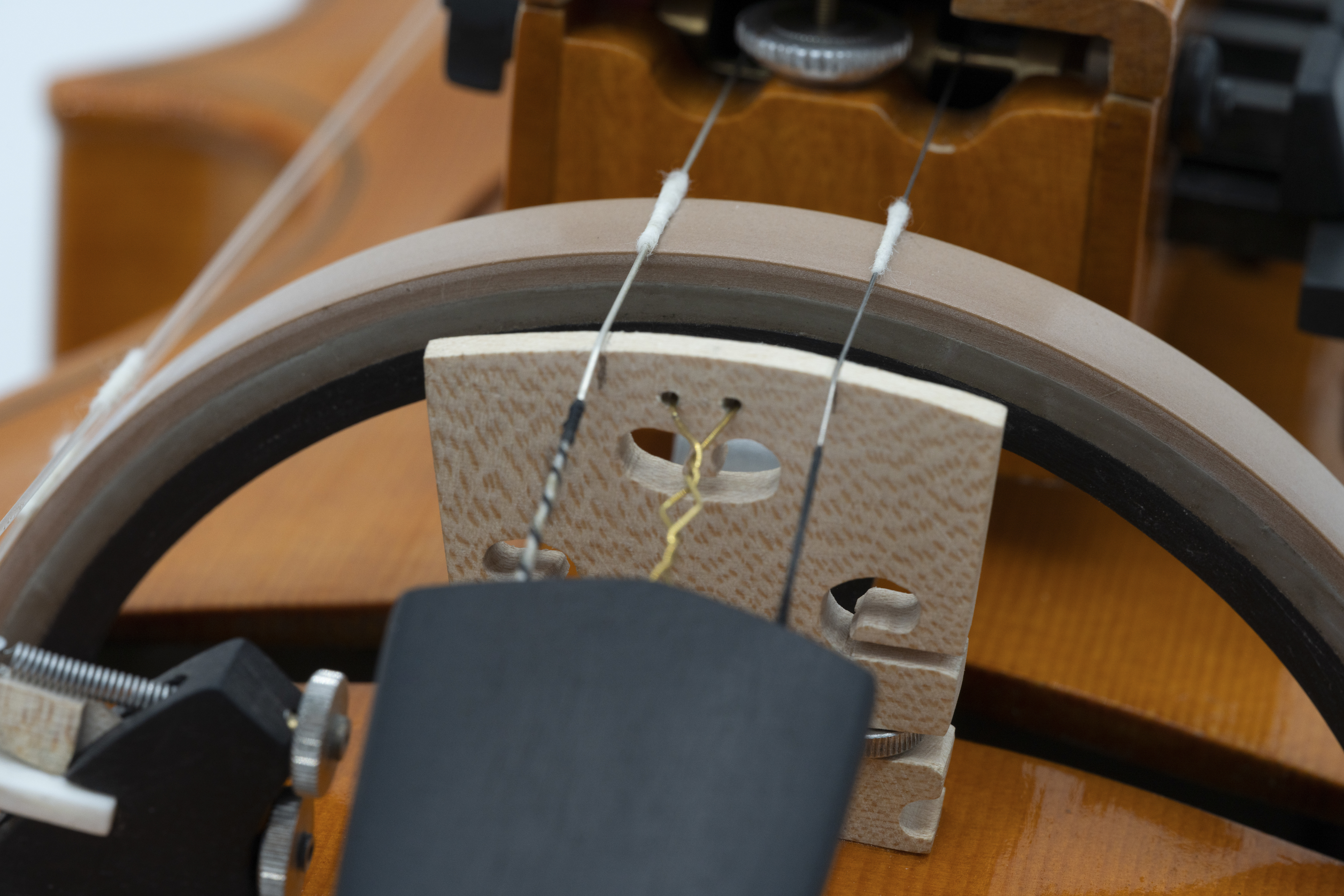

Chanterelle Bridge: Adjustable

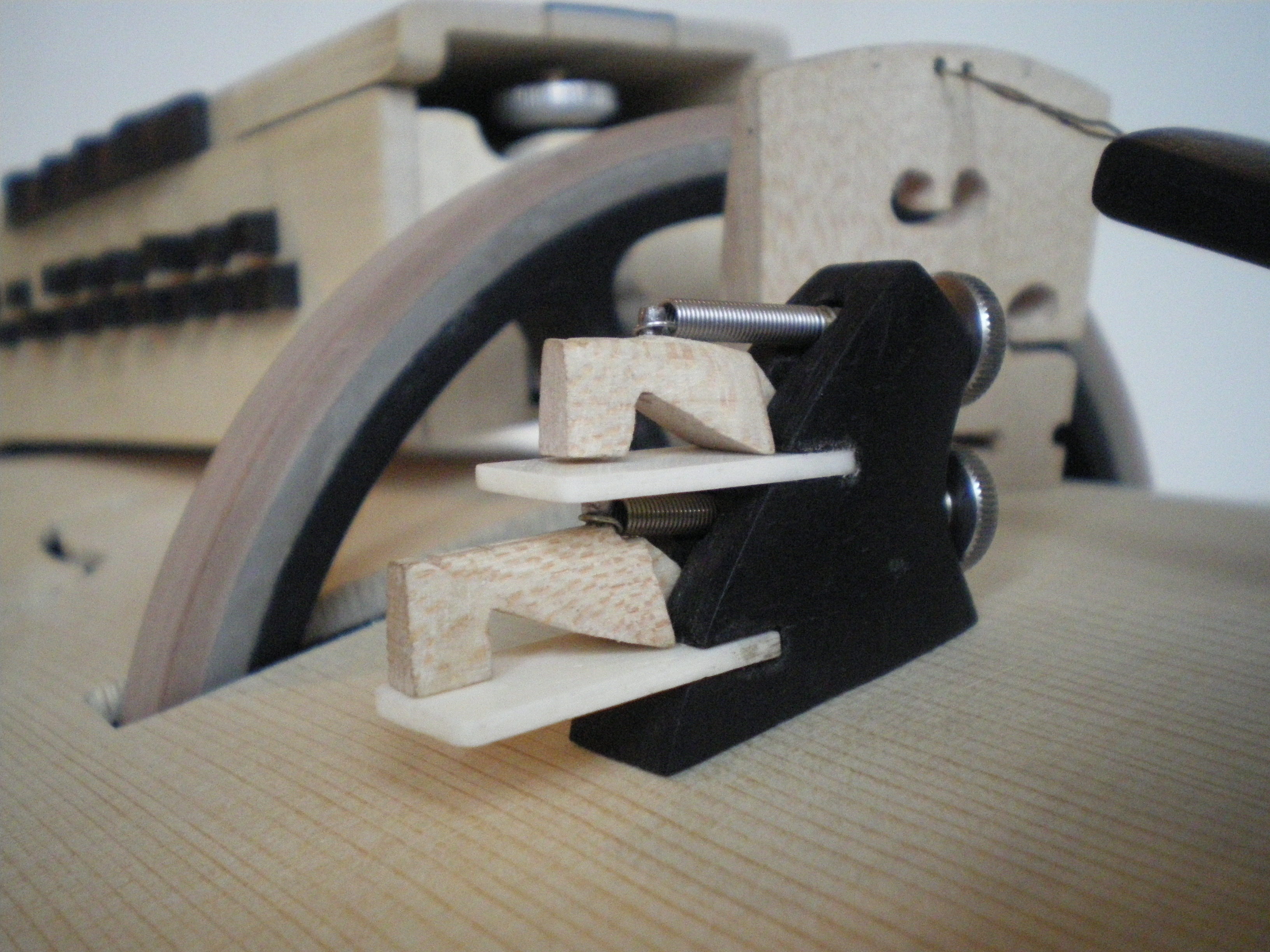

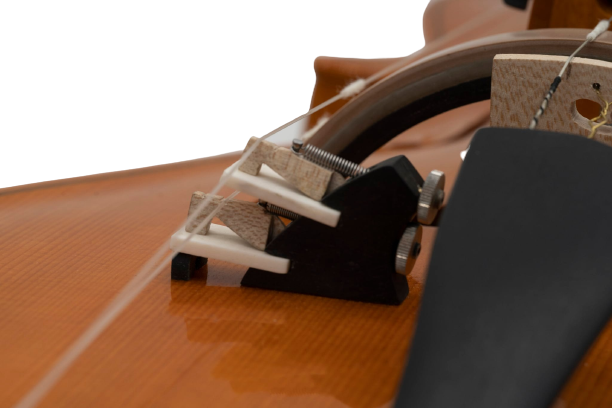

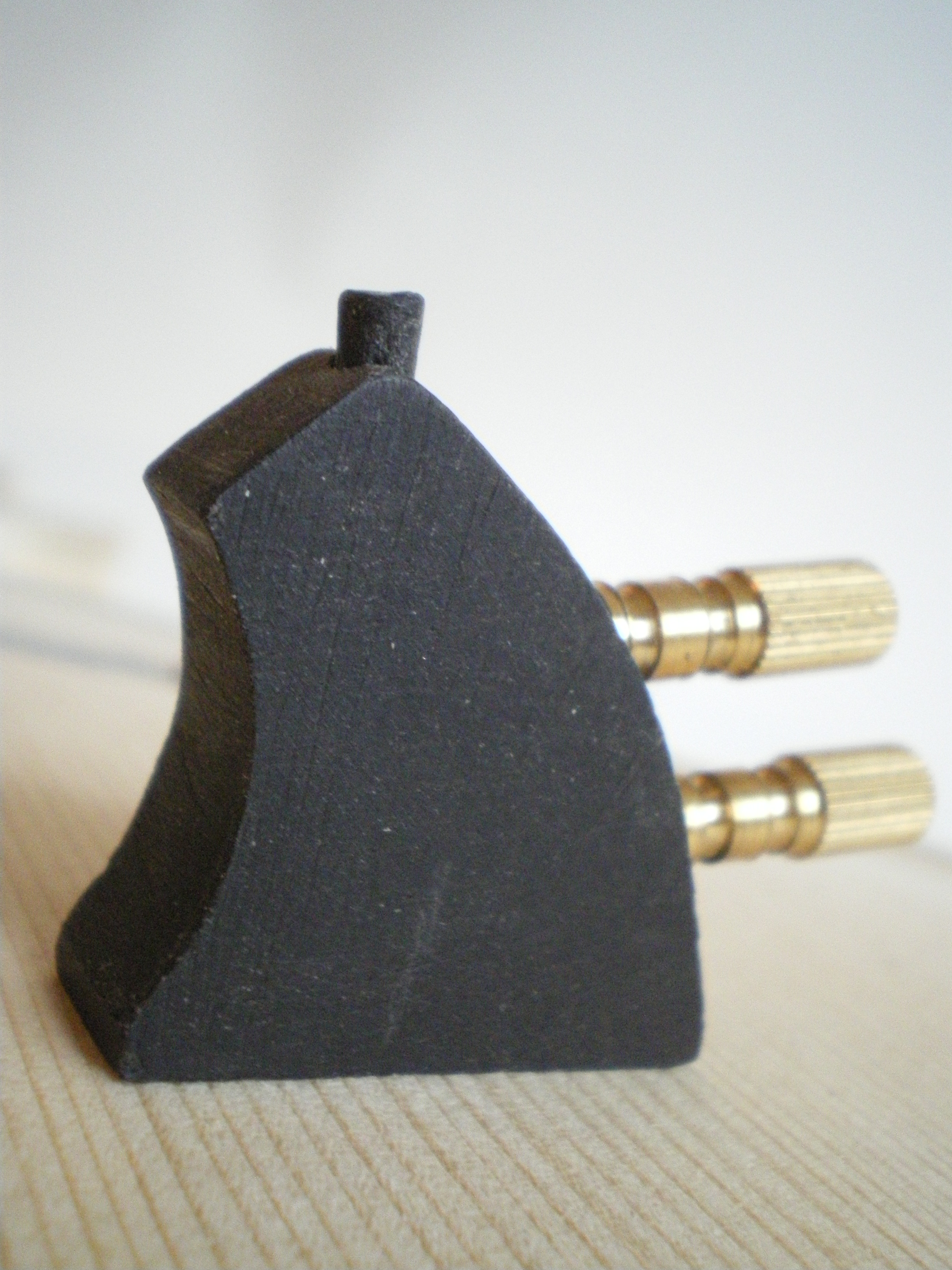

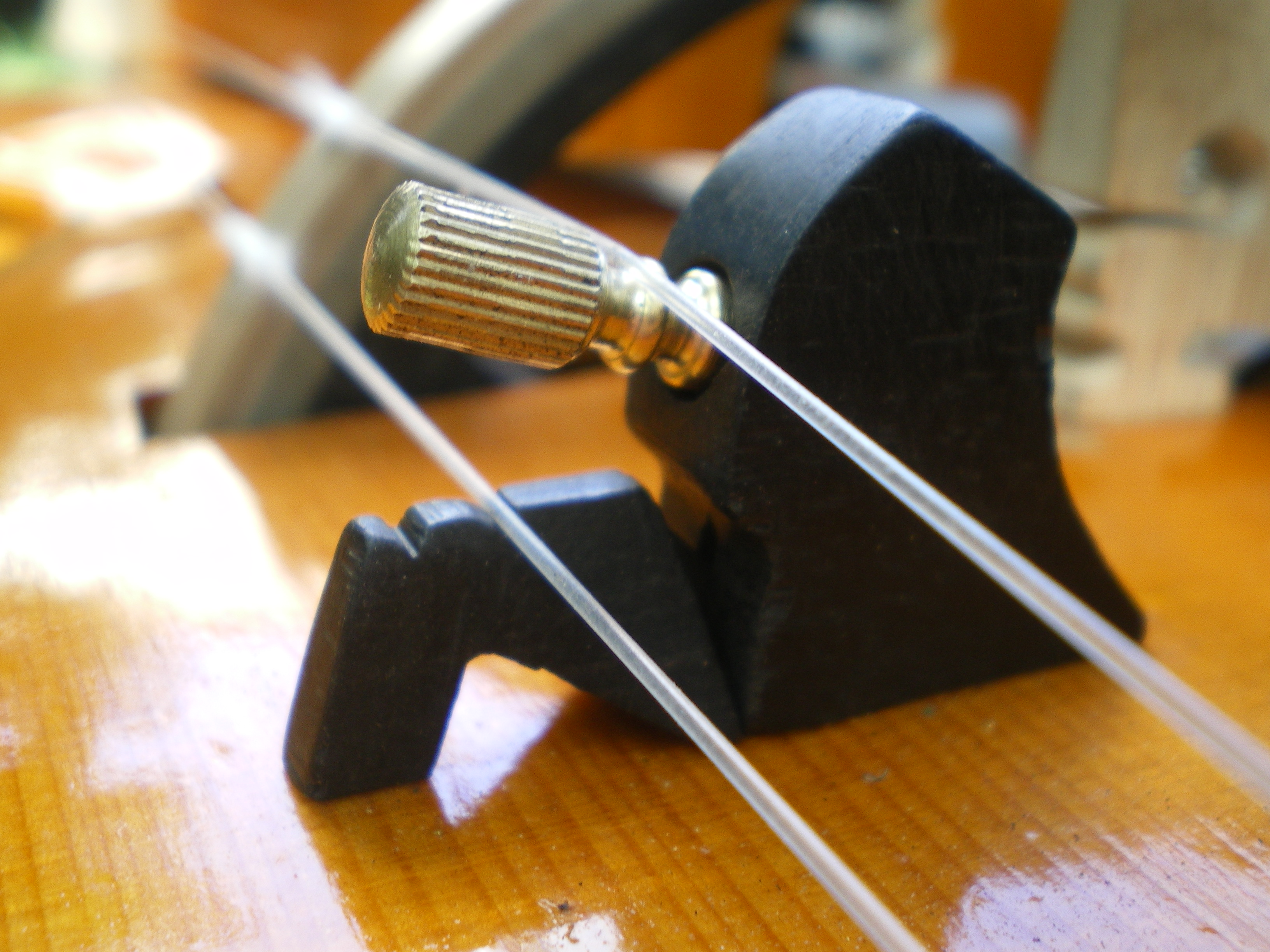

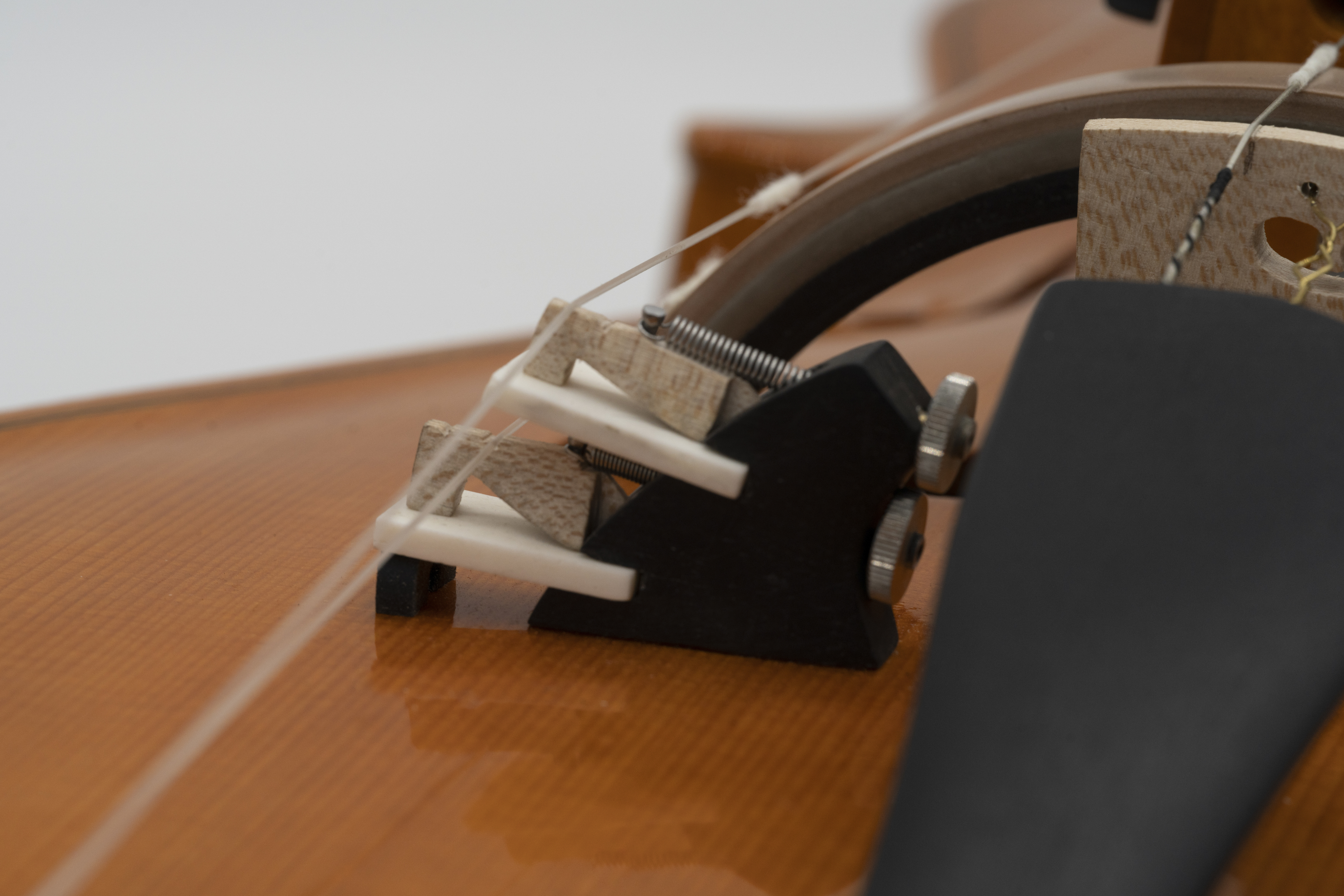

Buzzing Bridge: Intensity adjustable

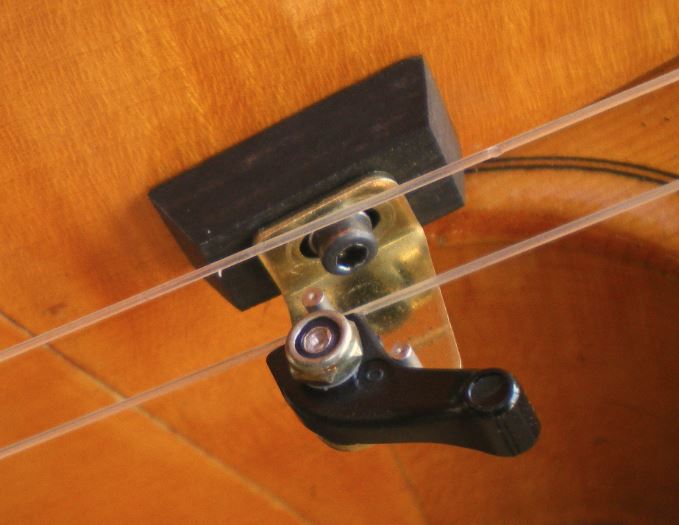

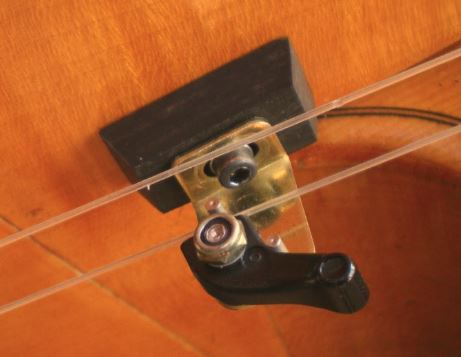

Capos: Trompettes & Bourdons
Surface: Oil Varnish
Electronics: Piezo, Schaller Oyster SP
